Processing: Microcontroller, Microprocessor

For processing we need a computer. Different purposes require different computers. E.g. your laptop has a different purposes than the one in your phone or the camera.

Microcontroller

In physical computing very often a microcontroller is used.

  • Are optimized for control of physical input and output.
  • Small, very simple and receives information through sensors, controls basic motors and sends information to other devices.
  • Found in everything e.g. washing machines, light switches, keyboards and computer mice.
  • Don't have an operating system, just run one program (that you will program onto the controller from a personal computer using a dedicated hardware programming device).
  • Come in different layouts and sizes but need a so called development board to operate:
    • The Processor Itself
    • Power Regulation Circuitry
    • Hardware Programmer Connector
    • Communications Interface Circuitry

Examples:

ESP32

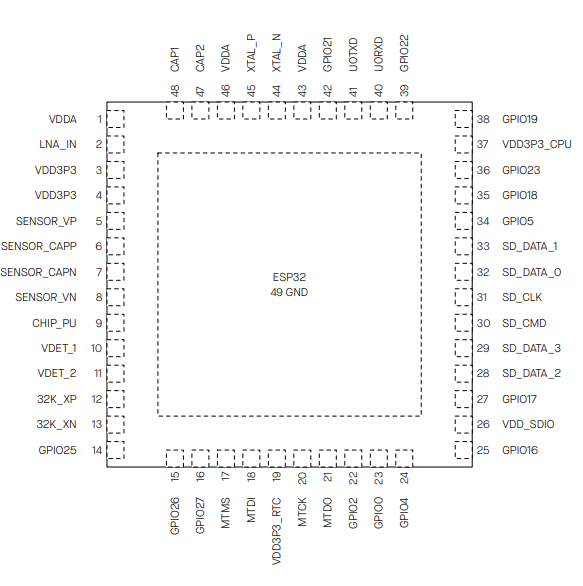

ESP32 module

ESP32 module

This is a microcontroller with integrated Wi‑Fi and Bluetooth, designed for IoT and embedded applications. (Used also in this class)

Here is a tutorial page dedicated to ESP32.

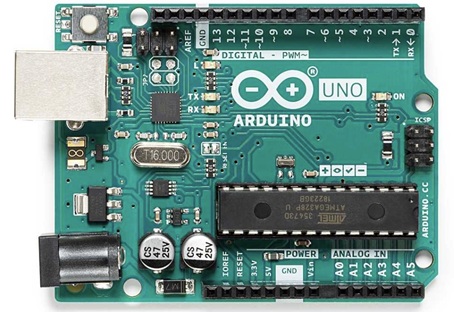

Arduino Uno (development board)

Arduino Uno

Microprocessor

Raspberry Pi

More powerful: Microprocessor

  • A computer.

  • Needs periphery (RAM, memory).

  • Runs an operating system.

  • Cost-effective and fully-fledged personal computer.

We will use it also in class embedded in a small driving robot.

Pin Functions of Microcontroller

Microcontrollers can have between 6 and 60 pins:

  • Attach power connections.
  • Input and output connections.
  • Communications connections.

Every microcontroller has different configurations for its pins, and often one pin will have more than one function.

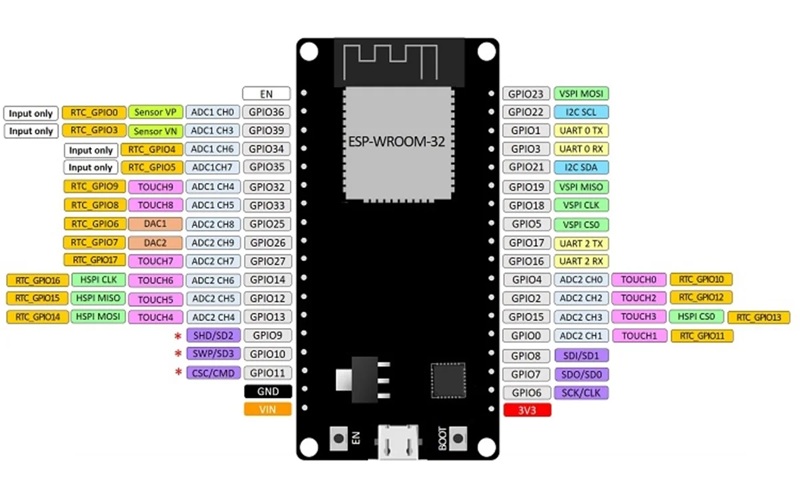

ESP32 Devboard Pins

ESP32 Pin Layers

Pin Layer Description What It Refers To
ESP32-WROOM-32 Module pins The 38 physical pads on the metal-cased module itself These are directly connected to the ESP32 chip inside the module
Development board pins The header pins (e.g., “GPIO 21”, “VIN”, “3V3”) on your DevKit These are mapped to the module pins, sometimes with naming differences or extra components in between because these are functional pin names (what they do)

Lets consider:

| GPIO15| ADC2_CH3 | TOUCH3 | HSPI_CS0 | RTC_GPIO13|

Each part describes different internal functions of the same physical pin on the ESP32.

GPIO15: digital pin number used in Arduino or ESP-IDF code.

  • When you use digitalWrite(15, HIGH) you’re toggling this pin.
  • It’s the logical pin identifier.

ADC2_CH3

  • This means the pin is connected to the Analog-to-Digital Converter 2, Channel 3.

TOUCH3

The ESP32 has capacitive touch sensors built into some GPIOs.

  • TOUCH3 means this pin can act as touch sensor number 3.

In Arduino, you can use it like:

int touchValue = touchRead(T3); // or touchRead(15)

HSPI_CS0 (SPI = Serial Peripheral Interface)

Use it when you connect e.g. to a display or other sensors.

References for pins

A reference to ESP32 pins you can find on this page. You can find more details generally on pins on this page.
